DOMESTIC VOLUMETRIC WATER METERS

Domestic water meters are implemented and used to measure the flow of water passing from a mains pipe into domestic residences. When it comes to domestic water meters, Pipe Fittings And Accessories offers both brass water meters and plastic water meters. Each has its own features and benefits.

Brass Domestic Water Meters

Pipe Fittings And Accessories supplies the V100 (PSM) brass water meter, which is a favoured option used in over 100 countries worldwide. It can be purchased in a variety of sizes, from 15mm to 40mm. Flow through these water meters ranges from 7.5l/h to 20m³/h.

The advantages of using brass water meters for domestic volumetric applications include:

Accuracy and high performance
Improved durability
Tamperproof in construction
Leak-proof in construction
Easy to read
Pulse output available
Performance to ISO 4064 Class C or D
Maximum working temperature of 50ºC
Maximum working pressure of 16 bar

anchor-tag

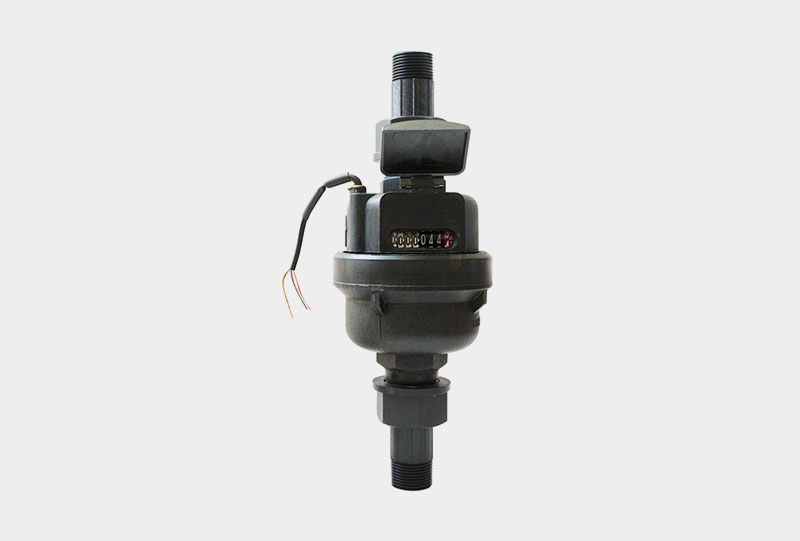

Plastic Domestic Water Meters

We supply the V110 volumetric plastic water meter, which is manufactured using a co-polymer resin. This is generally preferred for more aggressive water flow or where dezincification properties exist. The plastic water meters we supply come in sizes ranging from 15mm. Flow through these water meters ranges from 15l/h to 7m³/h.

The advantages of using plastic water meters for domestic volumetric applications include:

Optimum accuracy and performance
Improved durability (specifically for 15mm and 20mm)
Tamperproof in construction
Leak-proof in construction
Easy to read
Pulse output available
Performance to ISO 4064 Class C
Maximum working temperature of 50 C
Maximum working pressure of 10 bar (16 bar on 15mm size)

We supply a full range of water meters at Pipe Fittings And Accessories, and we can also guide you in the most effective installation for your requirements.
